RIGID-IMC FITTINGS

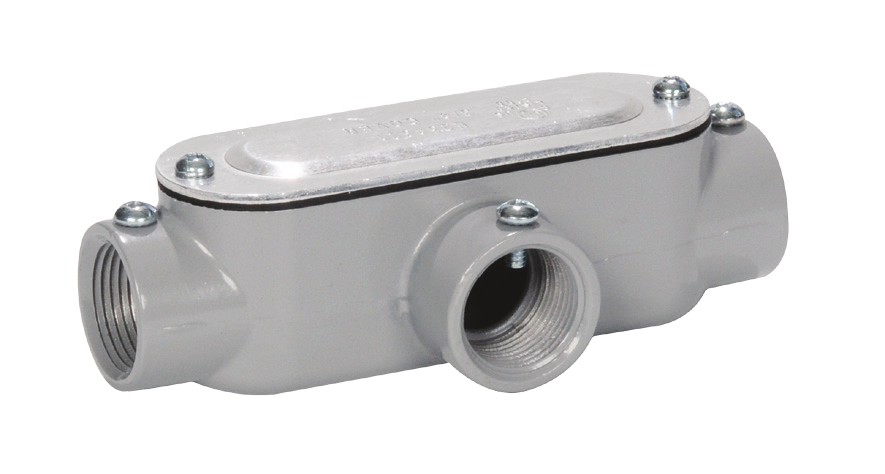

ALUMINUM COMBINATION CONDUIT BODIES WITH COVER AND GASKET

APPLICATION

Used with threaded rigid conduit, IMC, and EMT for providing access to the interior of a conduit system for pulling, splicing, inspection and maintenance.

FEATURES

  • Assembled with slotted/ Robertson combination
    screws.
  •  Assembled with neoprene gasket and stamped
    cover.
  •  Tapered threaded hubs (NPT).
  •  Die cast fom high-strength, corrosion and
    weather resistant, copper-free aluminum alloy.Flat back design for easy mounting close to
    walls.
  •  Suitable for use in concrete.

STANDARD MATERIALS

Die cast/Copper-free Aluminum

STANDARD FINISH

Aluminum Enameled

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
T1CA 1/2” 10 50 64501
T2CA 3/4” 10 50 64502
T3CA 1” 5 25 64503
T4CA 1-1/4” - 10 64504
T5CA 1-1/2” - 10 64505
T6CA 2” - 5 64506
