RIGID-IMC FITTINGS

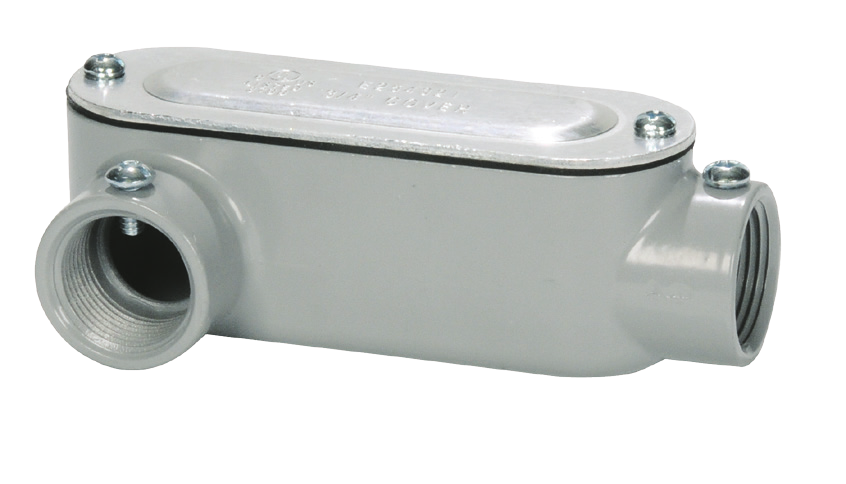

ALUMINUM COMBINATION CONDUIT BODIES WITH COVER AND GASKET

APPLICATION

Used with threaded rigid conduit, IMC, and EMT for providing access to the interior of a conduit system for pulling, splicing, inspection and maintenance

FEATURES

  • Assembled with slotted/ Robertson combination screws.
  • Assembled with neoprene gasket and stamped cover.
  •  Tapered threaded hubs (NPT).
  •  Die cast fom high-strength, corrosion and weather resistant, copper-free aluminum alloy.
  • Flat back design for easy mounting close to walls.
  • Suitable for use in concrete.

STANDARD MATERIALS

Die cast/Copper-free Aluminum

STANDARD FINISH

Aluminum Enameled

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LR1CA 1/2” 10 50 64301
LR2CA 3/4” 10 50 64302
LR3CA 1” 5 25 64303
LR4CA 1-1/4” - 10 64304
LR5CA 1-1/2” - 10 64305
LR6CA 2” - 5 64306
Download Specification Sheet
