RIGID-IMC FITTINGS

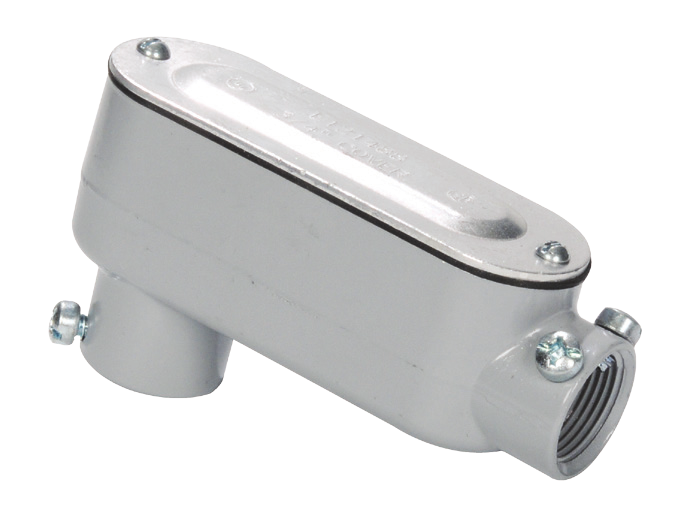

ALUMINUM COMBINATION CONDUIT BODIES WITH COVER AND GASKET

APPLICATION

Used with threaded rigid conduit, IMC, and EMT for providing access to the interior of a conduit system for pulling, splicing, inspection and maintenance.

FEATURES

  • Assembled with slotted/ Robertson combination screws.
  • Assembled with neoprene gasket and stamped cover.
  • Tapered threaded hubs (NPT).
    Die cast fom high-strength, corrosion and weather resistant, copper-free aluminum alloy.
  •  Flat back design for easy mounting close to walls.
  •  Suitable for use in concrete.

STANDARD MATERIALS

Die cast/Copper-free Aluminum

STANDARD FINISH

Aluminum Enameled

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LB1A 1/2” 10 50 40015
LB2A 3/4” 10 50 40025
LB3A 1” 5 25 40035
LB4A 1-1/4” - 10 40045
LB5A 1-1/2” - 10 40055
LB6A 2” - 5 40065
LB7A 2-1/2” - 1 40075
LB8A 3” - 1 40085
LB9A 3-1/2” - 1 40095
LB10A 4” - 1 40106
