AC-MC-FLEX FITTINGS

SEPCO CARRIES A LARGE INVENTORY OF AC-MC-FLEX FITTINGS!

Including big bite-saddle type connectors and couplings, quicklock type connectors, and malleable iron or zinc cable connectors. We also offer zinc two screw take-all connectors. Get what you need with SEPCO’s unparalleled service and delivery.

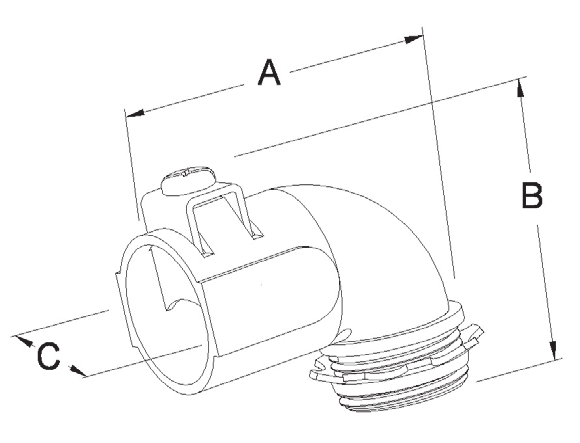

90° BIG BITE-SADDLE TYPE CONNECTORS WITH INSULATED THROAT

Back
image description
image description

DB5090-IC

Trade Size 1/2”
Cable Opening Max 0.937
Cable Opening Min 0.750
Ko Size 1/2”
Dim A 2.125
Dim B 2.250
Dim C 1.250
Unit Pack 25
Master Pack 100
Lbs. / 100 Pcs. 16
UPC 99917
Competitor Part Number ACB5090, MDB-5090-B, 3132, 491TBS

APPLICATION

To connect Flex, AC and MC cables to a box or an enclosure

FEATURES

  • Male Hub Threads- NPSM
  • One piece malleable construction affording extra strength
  • Dual gripping saddle clamps
  • Saddle clamp rides up & down on screw for ease of installation
  • Robertson Head Screws
  • Furnished with Insulated Throat

STANDARD MATERIALS

Malleable Iron/Steel Locknuts/Steel Clamps

STANDARD FINISH

Zinc Plated

UL LISTED

E309514
